A camera that fails on a mountain shoot is an inconvenience. A camera that fails in orbit is unrecoverable. That single fact shapes almost every decision that goes into building a space imaging camera, and it explains why hardware that looks similar to a high-end aerial or studio camera on a spec sheet is, underneath, a substantially different engineering project once it is destined for Low Earth Orbit.

What actually breaks a camera in orbit?

Low Earth Orbit sits below the densest part of the Van Allen radiation belts, but it is far from radiation-free. Spacecraft there are exposed to energetic protons and electrons, with particular hotspots such as the South Atlantic Anomaly, where the inner radiation belt dips closer to the planet’s surface. Over time, this radiation can degrade semiconductor components or cause sudden single-event upsets, momentary glitches in memory or logic that, left unhandled, can corrupt data or crash a system entirely. A ground-based camera has no reason to defend against any of this. A space-qualified one has no choice.

How do you actually engineer around that?

The common approach mixes radiation-hardened components with careful selection of commercial off-the-shelf parts, combined with a real-time fault detection, isolation, and recovery system running onboard. That system’s job is to catch a single-event upset as it happens and recover from it automatically, without needing a ground operator to intervene. Because a satellite in Low Earth Orbit cannot be serviced by a technician, this kind of self-healing behavior is not a convenience feature; it is what allows a five-year mission to actually last five years instead of ending the first time cosmic radiation flips a bit at the wrong moment.

What about the temperature swings?

Orbit brings extreme thermal cycling as a spacecraft repeatedly moves in and out of the Earth’s shadow, and a camera built for this environment is typically rated across two distinct ranges: the temperatures it needs to keep operating within, and the wider range it needs to simply survive without permanent damage even if it is not actively capturing images at that moment. A representative current design is rated to operate between roughly minus 10 and plus 40 degrees Celsius, while being built to survive swings from minus 30 up to 70 degrees Celsius. That gap between operating range and survival range is deliberate headroom, a buffer against the reality that space does not always cooperate with a mission plan.

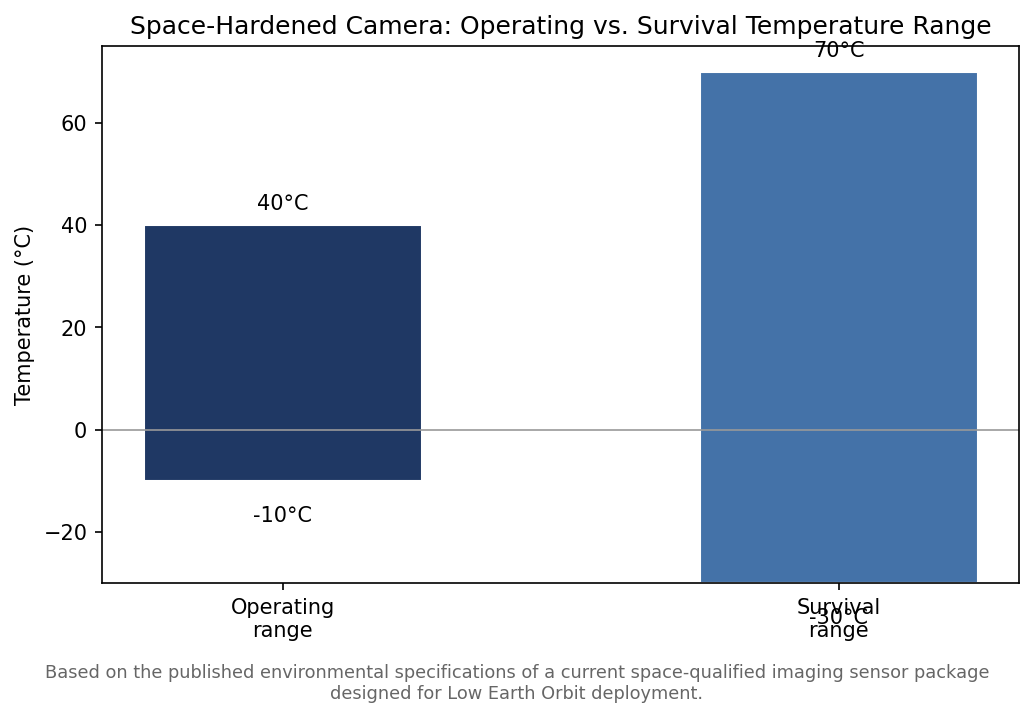

Operating versus survival temperature range for a current space-qualified imaging sensor package.

Does image quality actually suffer for the sake of durability?

It is a fair assumption, but the current generation of space imaging hardware suggests otherwise. A representative iXM-SP150 camera system pairs a 150-megapixel back-illuminated CMOS sensor with roughly 83 decibels of dynamic range and read noise of about 3.4 electrons, numbers that would be respectable in a ground-based scientific imaging system, let alone one that also has to survive launch vibration, vacuum, and years of radiation exposure. The snapshot-style capture used by this class of camera also avoids a specific problem common to line-scanning satellite sensors: because the whole frame is exposed at once rather than built up strip by strip as the satellite moves, there is no risk of the geometric smearing or distortion that line-scan time-delay-integration designs can introduce.

Why does any of this matter beyond the space industry itself?

Earth observation from orbit increasingly underpins work well outside traditional aerospace: environmental monitoring, disaster response, agricultural planning, and defense and security applications all depend on a steady stream of reliable, high-resolution imagery. According to the wider technical literature on Low Earth Orbit, missions in this altitude range benefit from lower latency and reduced launch cost compared with higher orbits, which is part of why commercial small-satellite programs have grown so quickly in recent years, and why demand for compact, durable, high-resolution camera systems has grown alongside them. See, for reference, an overview of the radiation environment satellites face in Low Earth Orbit, which lays out why radiation hardening is treated as a baseline requirement rather than an optional upgrade for hardware operating at these altitudes.

None of this makes a space camera exotic for its own sake. Every added layer, from radiation-tolerant electronics to a wider survival temperature range to autonomous fault recovery, exists to answer one practical question: can this system keep delivering usable images for years, unattended, in an environment that offers no second chances. Judged against that question, the current generation of compact, high-resolution space imaging hardware represents a fairly direct engineering response to a genuinely difficult problem.

Frequently Asked Questions

Why can’t a standard high-resolution camera be used in space?

Standard cameras are not built to tolerate orbital radiation, extreme thermal cycling, vacuum, or launch vibration, and they have no way to detect and recover from radiation-induced faults without a technician present.

What is a single-event upset and why does it matter for satellite cameras?

It is a momentary glitch in electronics caused by a high-energy particle strike, such as a flipped memory bit. Onboard fault detection and recovery systems are used to catch and correct these automatically since a satellite cannot be serviced in orbit.

Why do snapshot-style sensors matter for satellite imaging?

Snapshot sensors expose an entire frame at once, avoiding the geometric smearing that can occur with line-scanning time-delay-integration sensors as a satellite moves during capture.

The IoT market is not slowing down. Industry estimates project the global installed base of connected devices will roughly double over the course of this decade, and most of that growth depends on wireless links that were not part of the conversation ten years ago. LoRaWAN has been the default choice for long range, low power sensor networks for years. WiFi HaLow, the sub-GHz IEEE 802.11ah standard, is now being positioned as a serious alternative. Neither one is a universal answer. The right choice depends on how far your devices are spread out, how much data they need to move, and how much power they have to spend doing it.

Range and Coverage

LoRaWAN was purpose built for long range communication at very low power. Its creator, Semtech, states that LoRa can reach up to five kilometers in urban environments and as far as fifteen kilometers in rural, low interference settings. That makes it a strong fit for widely dispersed devices such as agricultural sensors, environmental monitors, and supply chain trackers where a handful of gateways need to cover a large geographic footprint.

WiFi HaLow trades some of that maximum range for higher throughput. Operating in the unlicensed 900 MHz band rather than the crowded 2.4, 5, or 6 GHz bands used by conventional WiFi, it delivers meaningfully better penetration through walls and obstacles than standard WiFi, and covers a campus or building footprint rather than a multi-kilometer radius. For deployments where devices are dense but confined to a site, that tradeoff tends to work in HaLow’s favor.

Data Rates: Where the Two Standards Diverge Most

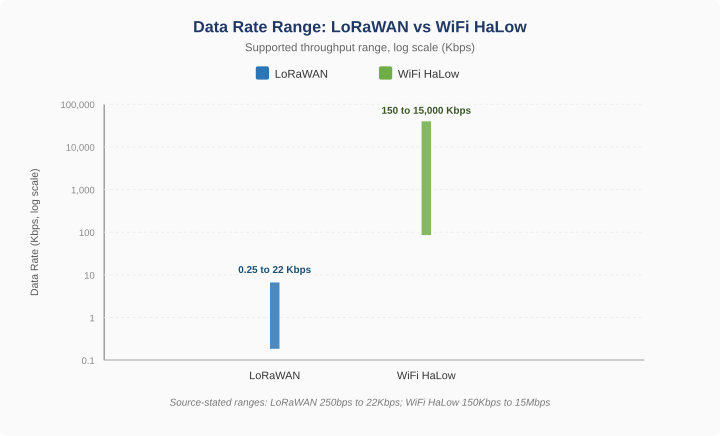

This is the single biggest difference between the two technologies. LoRaWAN’s supported data rates run from roughly 250 bits per second up to about 22 kilobits per second, a range built for short, infrequent sensor readings rather than continuous data streams. WiFi HaLow supports 150 kilobits per second up to 15 megabits per second, roughly 600 times the ceiling LoRaWAN offers. The chart below shows both ranges on a log scale, since the gap is too large to read clearly on a linear axis.

Security Posture

WiFi HaLow inherits its security model from the broader WiFi Alliance ecosystem. It supports WPA3 and Enhanced Open, based on Opportunistic Wireless Encryption, along with AES encryption for over the air traffic and secure firmware upgrade paths. That gives it a standardized, actively maintained security baseline. LoRaWAN’s security story is less uniform. The LoRa Alliance itself has acknowledged that implementation gaps, such as mishandled encryption keys or reused sequence numbers, can leave networks and devices vulnerable, and there is no equivalent guarantee that every deployment has been reviewed by independent security specialists.

Power Consumption

LoRaWAN remains the stronger option for battery powered devices that need to last months or years without a service visit, largely because its transmission pattern is intermittent and scheduled rather than continuous. WiFi HaLow strikes a different balance: it draws more power than LoRaWAN but far less than conventional WiFi, which makes it workable for battery powered sensors that also need to move meaningfully more data. Choosing between them often comes down to whether a deployment is bandwidth constrained or battery constrained first. For teams weighing this tradeoff against a broader industrial IoT gateway selection, power budget is usually the deciding factor before range or throughput.

Side by Side Comparison

Where Each One Actually Wins

LoRaWAN is the better fit when devices are spread across a wide area, power budgets are extremely tight, and the data being sent is small and infrequent, think soil moisture readings or asset location pings. WiFi HaLow wins when a site has a dense population of IoT devices that need to move more data than LoRaWAN can realistically handle, such as remote IoT asset monitoring across a utility substation, an industrial campus, or a smart building. Neither standard makes the other obsolete. Many deployments end up running both, using LoRaWAN for the long tail of low bandwidth sensors and HaLow for the subset of devices that need more throughput within a confined footprint.

How 802.11ah Changed the Calculation

WiFi HaLow’s arrival is not an incremental tweak to existing WiFi, it is a different physical layer built around a different set of tradeoffs. By operating in the sub-GHz band instead of the 2.4, 5, or 6 GHz bands used by conventional WiFi, HaLow gets both range and penetration benefits that standard access points cannot match, while still using a MAC and PHY certification process governed by the WiFi Alliance rather than a separate industry consortium. That matters for procurement and long-term support, since it puts HaLow devices on a more familiar certification and interoperability path than some IoT-specific radio standards. For organizations already standardized on WiFi Alliance certified equipment elsewhere in their network, that continuity can simplify vendor management even as the underlying radio technology changes.

Choosing a Gateway That Supports Both

Because most real deployments end up mixing connectivity types rather than standardizing on one, the more practical question is often not which standard to pick but which gateway platform can support LoRaWAN, WiFi HaLow, and cellular options such as private cellular connectivity for utilities side by side, so the network can evolve as device density and data needs change without a forklift replacement of the gateway layer.

Public safety agencies, critical infrastructure operators and border security programs have all been quietly rebuilding their video systems around the same idea: cameras that can flag what matters instead of simply recording it. That shift, from passive footage to intelligent video surveillance, is not a marketing trend. The market data behind it, and the operational pressures driving it, tell a fairly clear story about where security video is headed.

The market is scaling faster than most people realize

According to Grand View Research, the global video surveillance market was valued at approximately 83.48 billion US dollars in 2025 and is projected to reach 204.68 billion dollars by 2033, a compound annual growth rate of about 11.7 percent. That growth is not evenly distributed. IP based systems already account for more than half of global market revenue, and AI powered analytics, rather than raw camera counts, is increasingly cited by analysts as the segment driving the next phase of expansion. Separately, the broader homeland security market, which includes surveillance alongside border, aviation and critical infrastructure security, is forecast to grow from roughly 716 billion dollars in 2026 toward over a trillion dollars by 2033. Video is a comparatively small slice of that total budget, but it is one of the fastest growing pieces of it.

Why cameras alone are no longer enough

A single operator monitoring dozens of camera feeds cannot realistically watch all of them at once, and fatigue sets in quickly even when they try. That has always been the core limitation of traditional CCTV: the technology captured everything, but a human still had to notice the one frame that mattered. Intelligent video surveillance addresses that limitation by running detection and classification directly against the video feed, so the system itself flags a person entering a restricted zone, a vehicle idling somewhere it should not be, or a gap forming in perimeter coverage, rather than relying on someone catching it live or reviewing hours of footage after the fact.

Where this is showing up first

A few categories of deployment are ahead of the broader curve.

• Critical infrastructure protection. Power, water and transportation facilities are prioritizing systems that can detect intrusion or anomalies automatically, since these sites are often too large and too remote for constant human monitoring to be practical.
• Border and perimeter security. Long stretches of border or perimeter benefit disproportionately from automated detection, since the cost of stationing enough personnel to watch every meter of a fence line around the clock is simply not realistic.
• Homeland security and first responder coordination. Agencies operating under the broader homeland security systems umbrella are integrating video analytics with dispatch and command platforms so that a detection can trigger a response automatically rather than waiting for a phone call.
• Military and defense installations. Bases and forward operating locations increasingly rely on military grade surveillance cameras built to function continuously in harsh conditions, where a conventional commercial camera would fail well before its analytics ever became relevant.

Real time processing is the actual differentiator

The specific technology doing the differentiating is less about camera resolution, which has plateaued at genuinely useful levels for most applications, and more about how quickly a detection reaches a decision maker. Systems that process video on the device itself, rather than streaming everything to a distant server for analysis, cut out the latency and bandwidth cost of that round trip. In a border security or ai homeland security context, that difference between a detection that arrives in under a second and one that arrives after a multi second delay can be the difference between an actionable alert and a missed window entirely.

What the growth curve suggests about the next few years

Two things stand out in that comparison. First, video surveillance is growing roughly twice as fast as the broader homeland security budget it sits within, which suggests agencies are actively reallocating spend toward video and analytics rather than simply growing every category proportionally. Second, IP based and AI enabled systems are capturing a disproportionate share of that growth, meaning the money is flowing toward smarter systems rather than simply more cameras.

The practical takeaway

None of this data means every deployment needs the most advanced system available. It does mean that agencies and operators budgeting for the next few years should expect analytics, not additional camera counts, to be where the meaningful capability gains come from. A facility with fewer, smarter cameras that can detect and classify threats in real time is, in most of the scenarios described above, better positioned than one with twice as many cameras and no analytics layer behind them.
